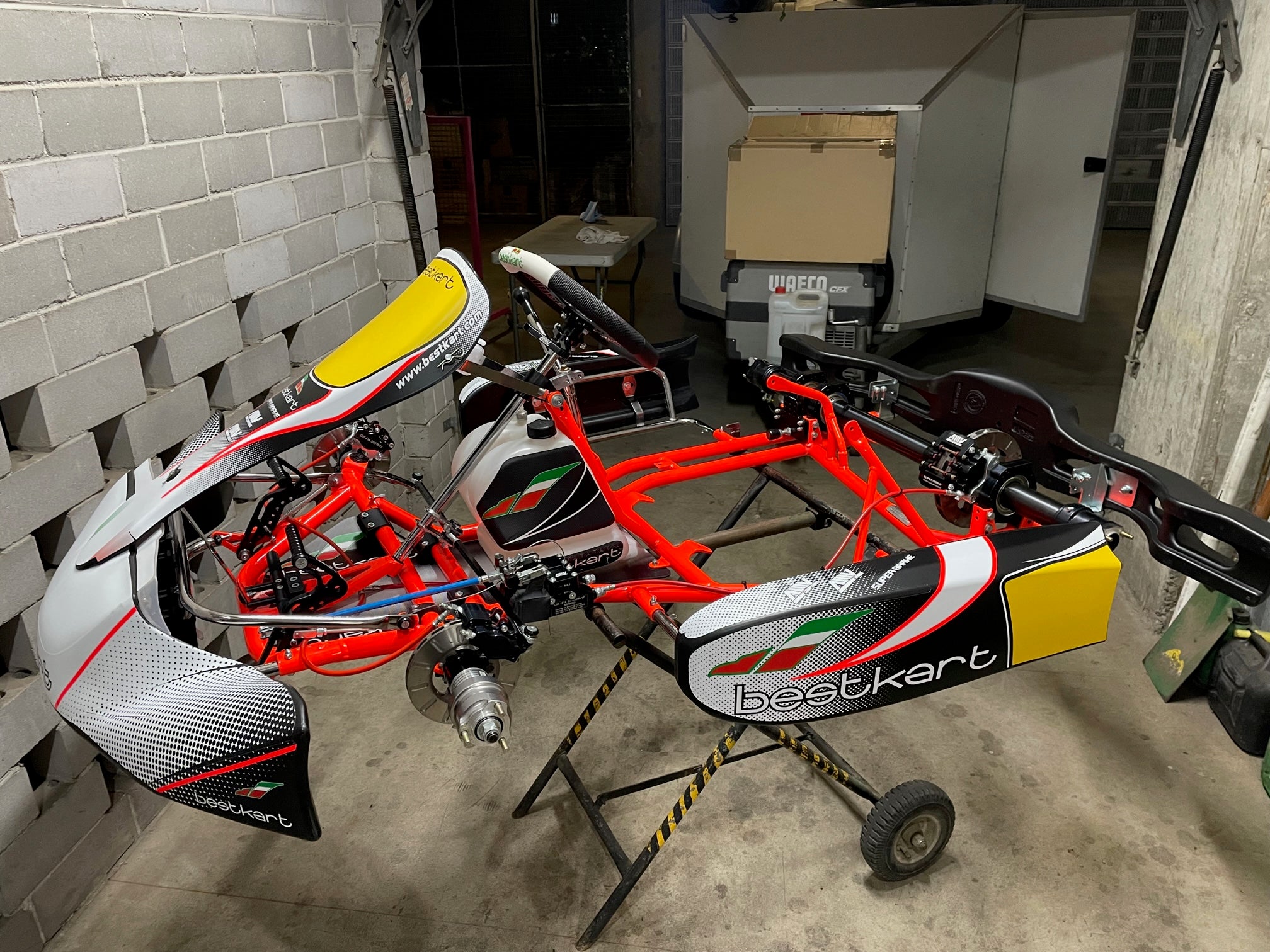

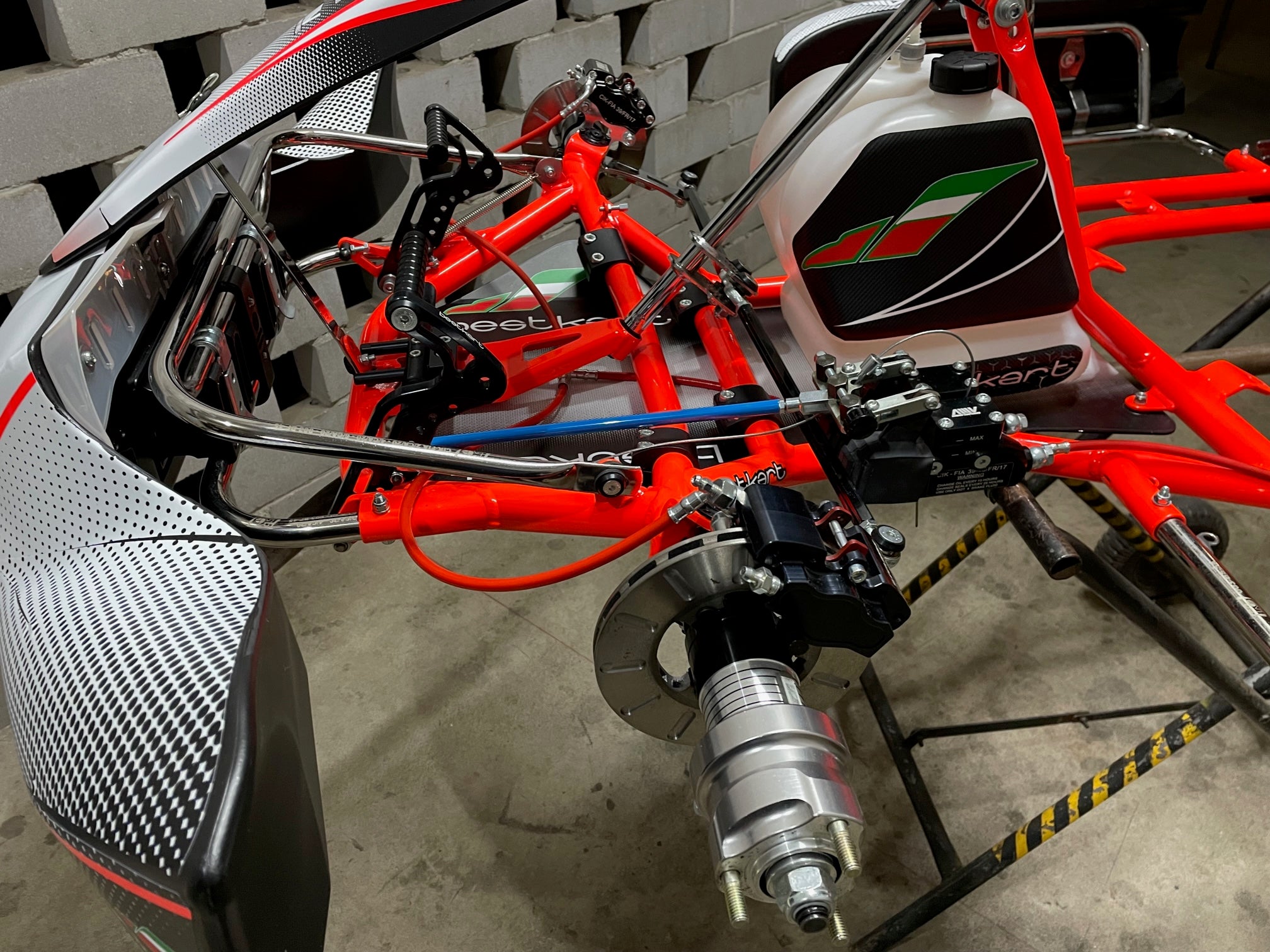

Bestkart F02 KZ Shifter chassis

Bestkart F02 KZ Shifter kart chassis

The Bestkart F02/KZ chassis uses two separate torsion bars allowing tuning at the waist or front of chassis.  The powerful AMV brake system with self adjusting calipers have high retardation but with good pedal feel allowing release from lockups without having to ease completely off the pedal.

The F02/KZ can also be reconfigured without front brakes and outboard sprocket for TAG/OK use, and would be a great chassis for high powered senior classes ( TAG 125)

• Frame 30/32mm with shifter gear lever and clutch
• Two removable torsion bars

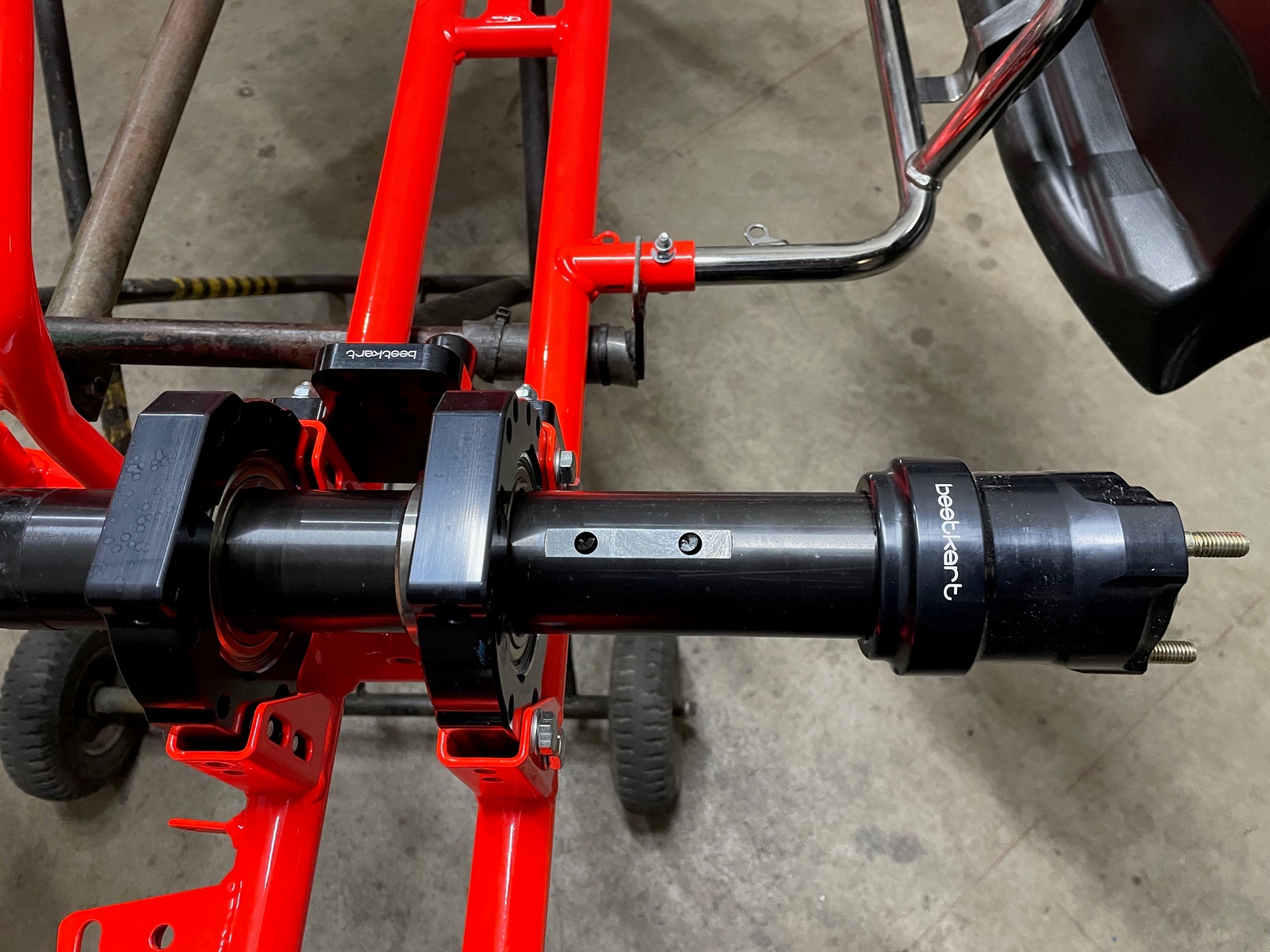

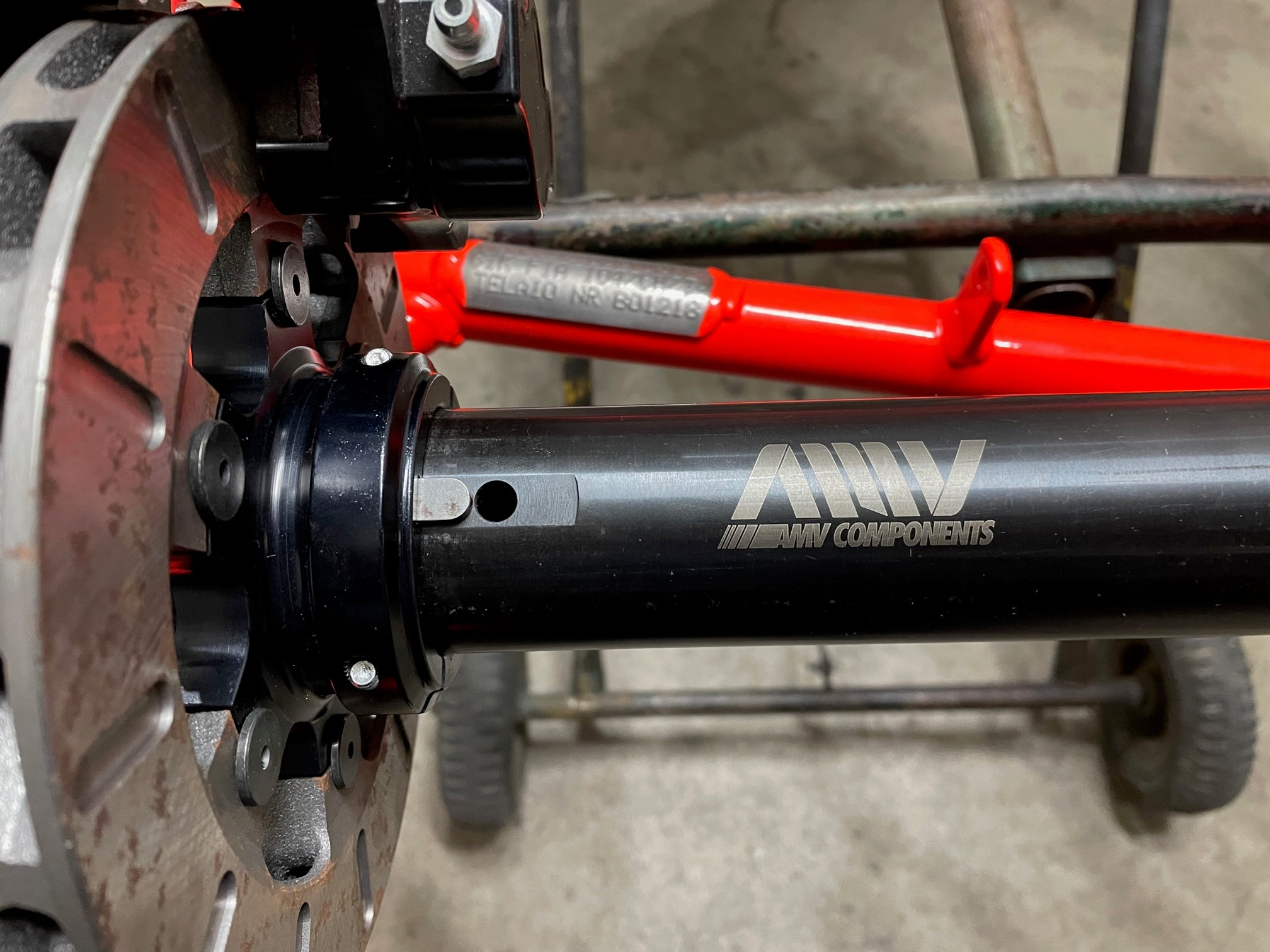

• Axle – 50mm AMV axle with AMV hubs/carriers

• Front spindles – 25mm with interchangeable stubs.  (3 grades available as options)

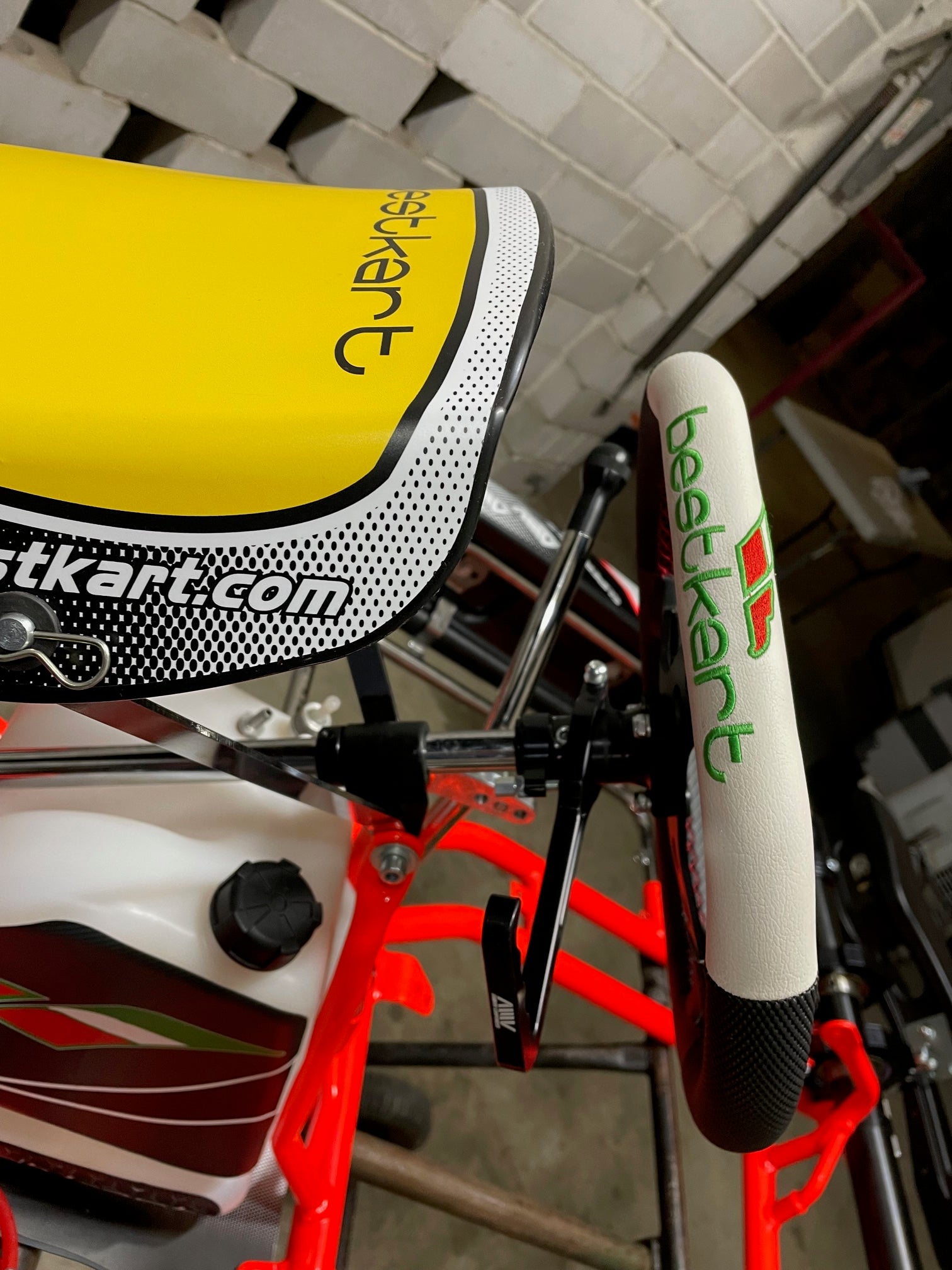

• Bestkart steering wheel with cable clutch lever

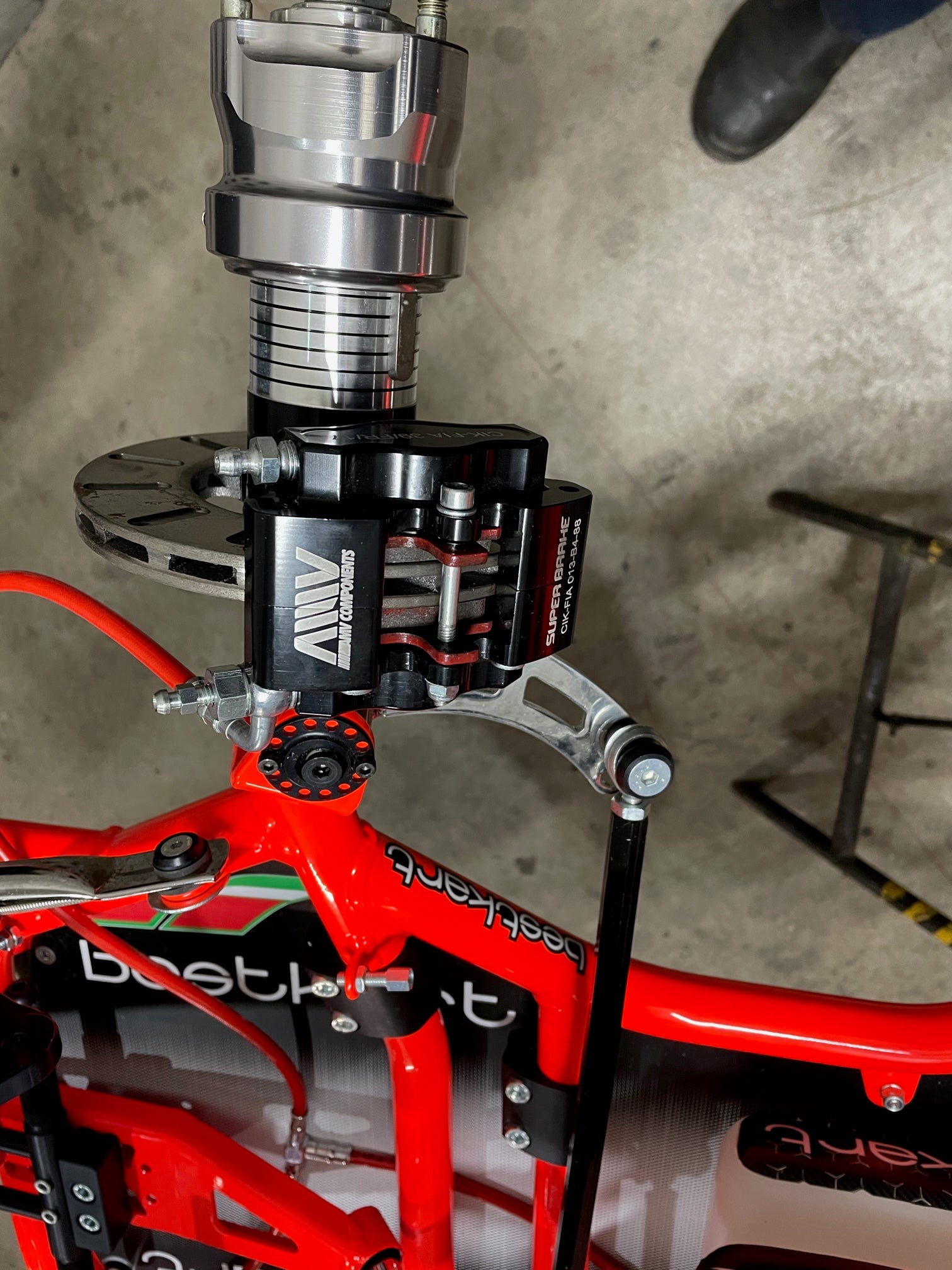

• Front Brakes - AMV vented floating disc with self-adjusting calipers

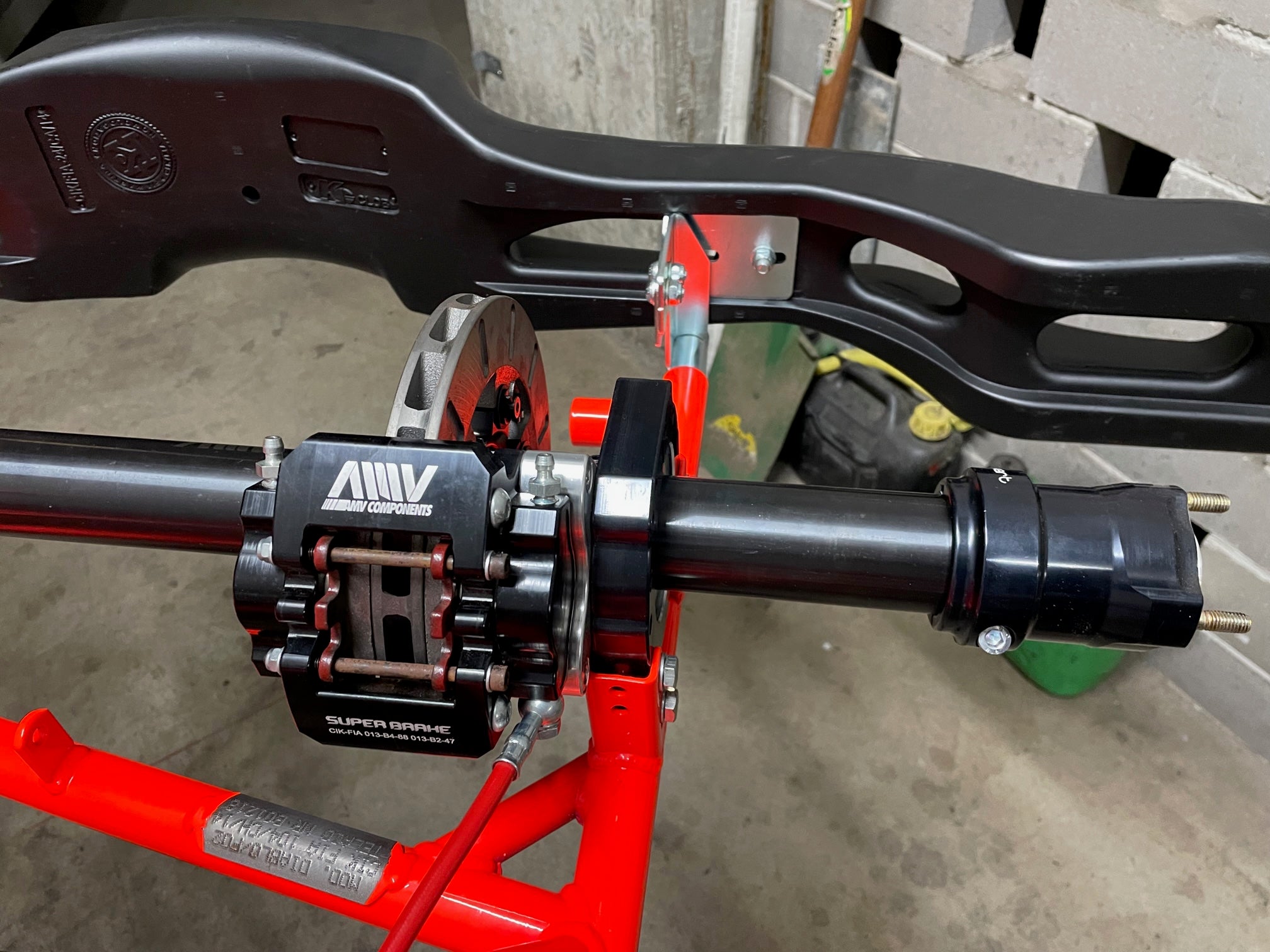

• Rear Brakes – AMV Vented floating disc with self-adjusting caliper.

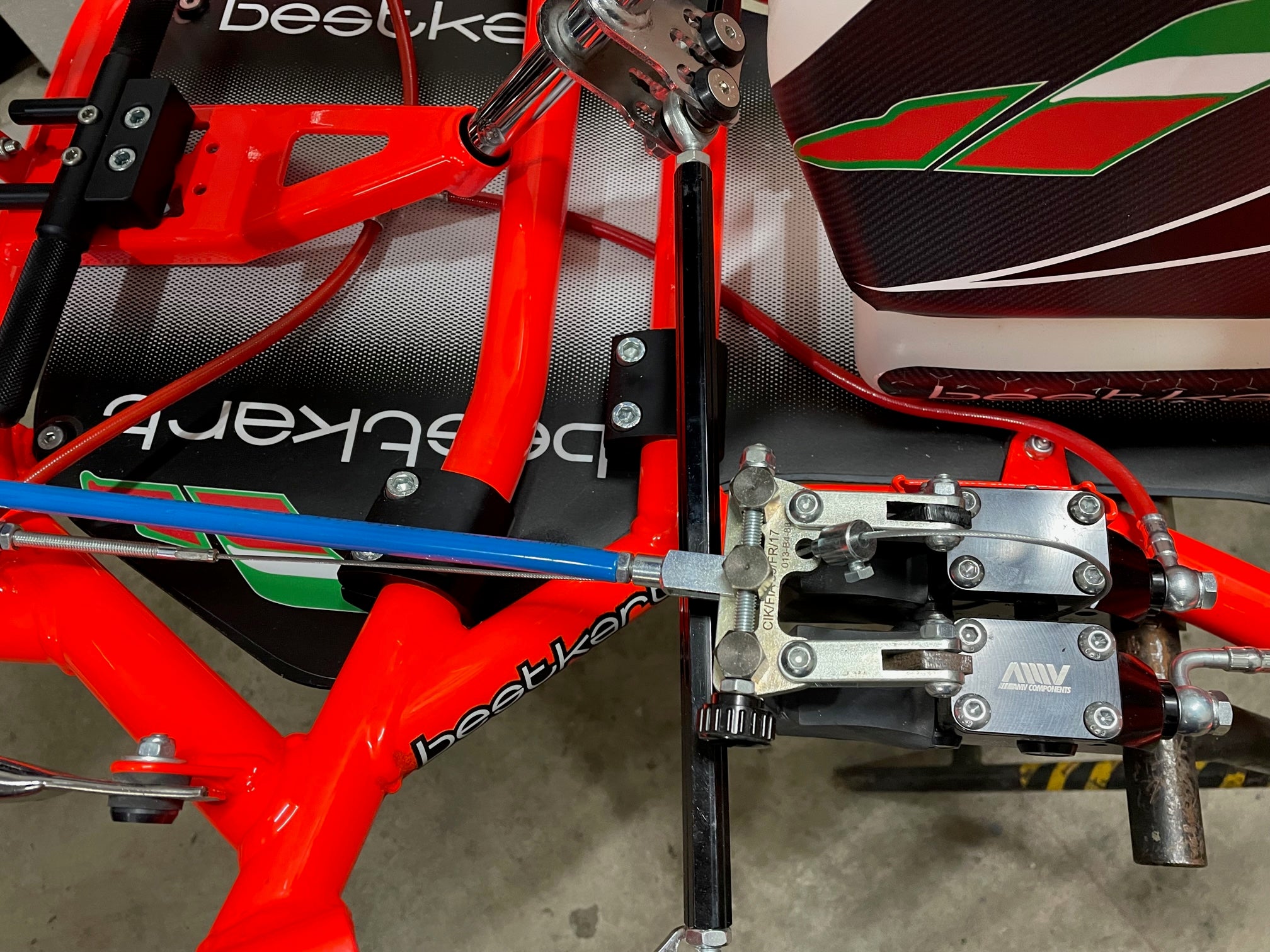

• Twin AMV brake master cylinders with bias adjustment

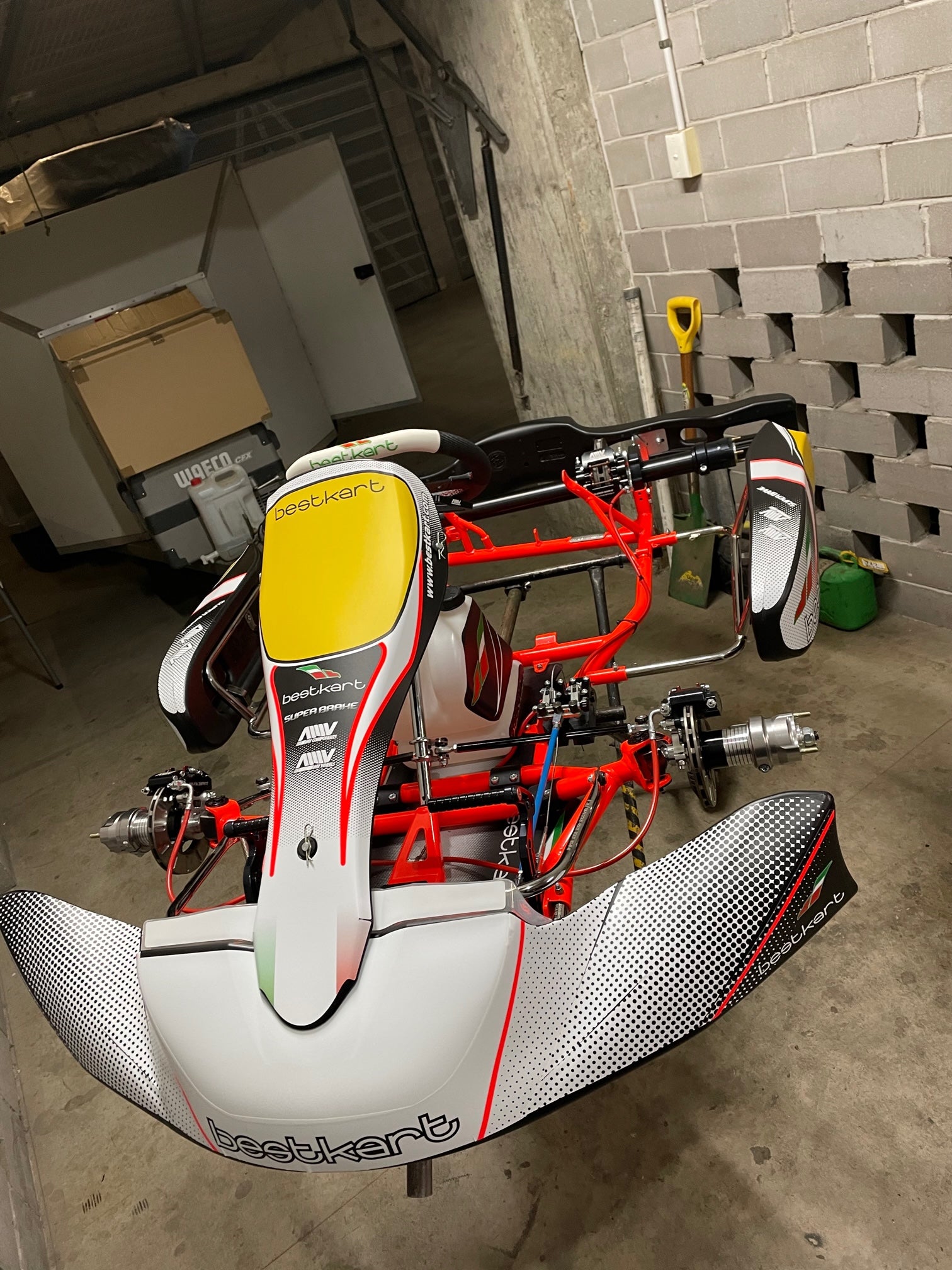

• KG 506 bodywork in black supplied with Bestkart sticker kit
• Alloy adjustable pedals with adjustable footrest
• AMV Lynx magnesium wheels 132/210mm

• AMV seat (IMAF) and mounting hardware
